Office Wall Installation

Sound diffusion active surface

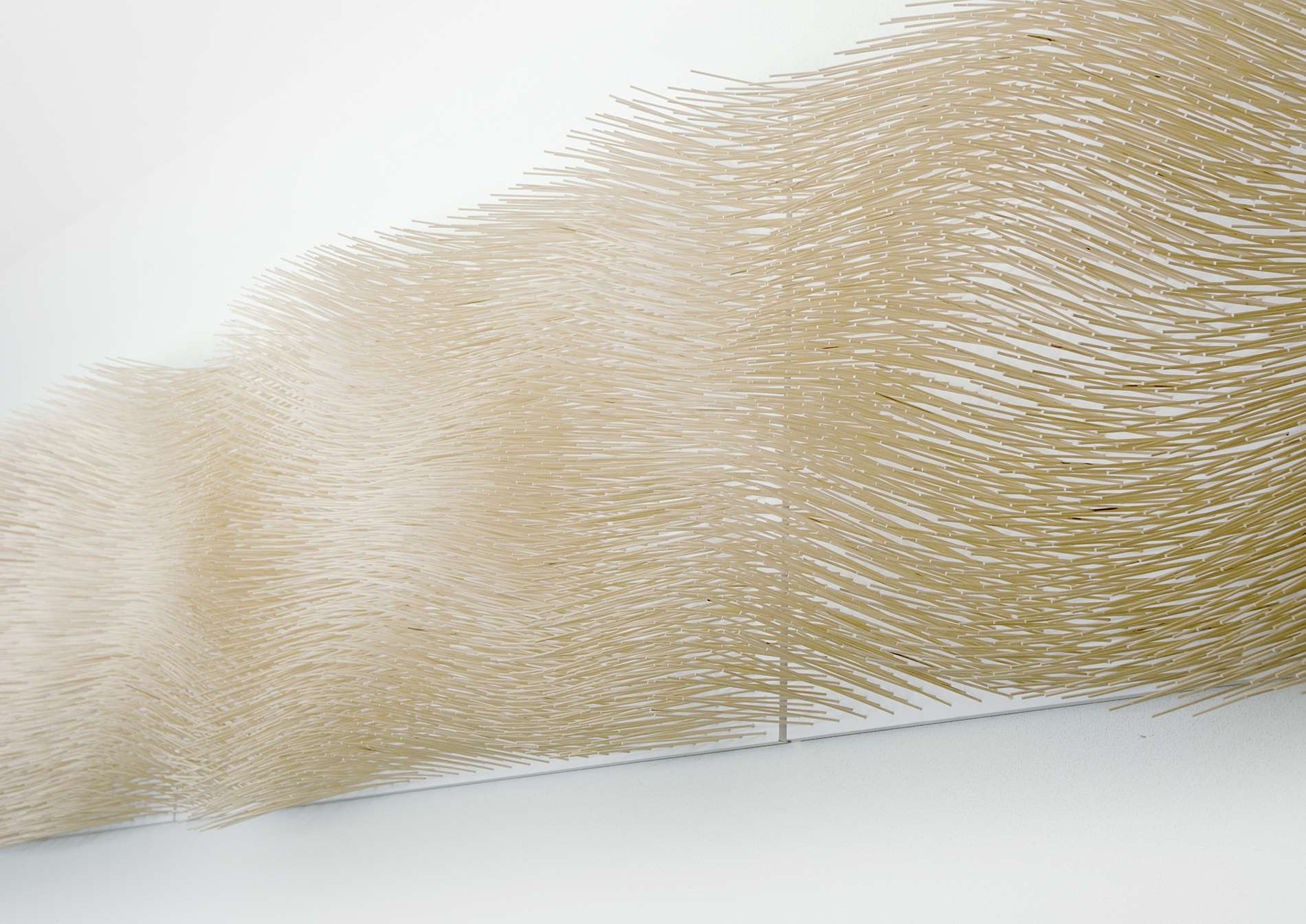

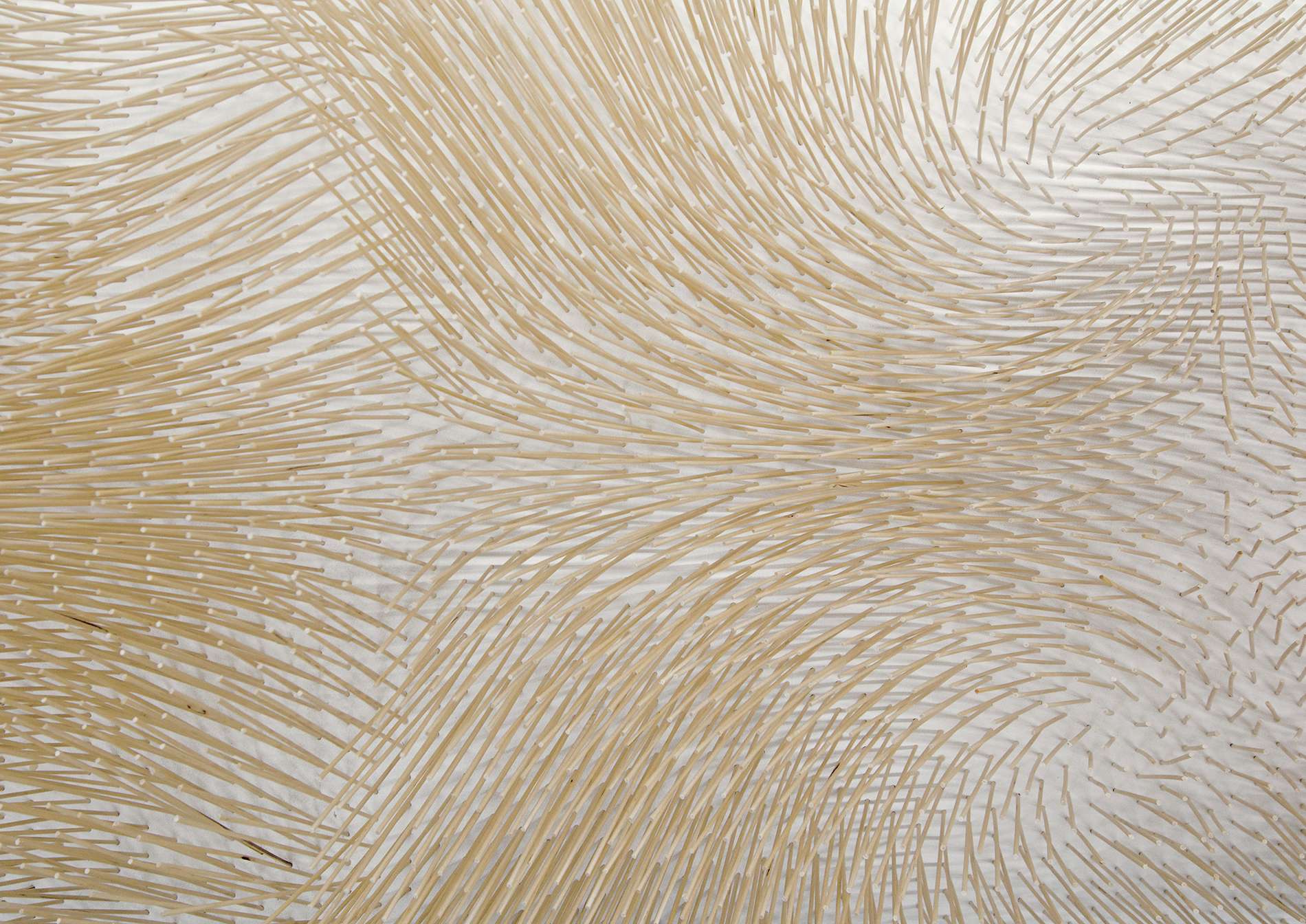

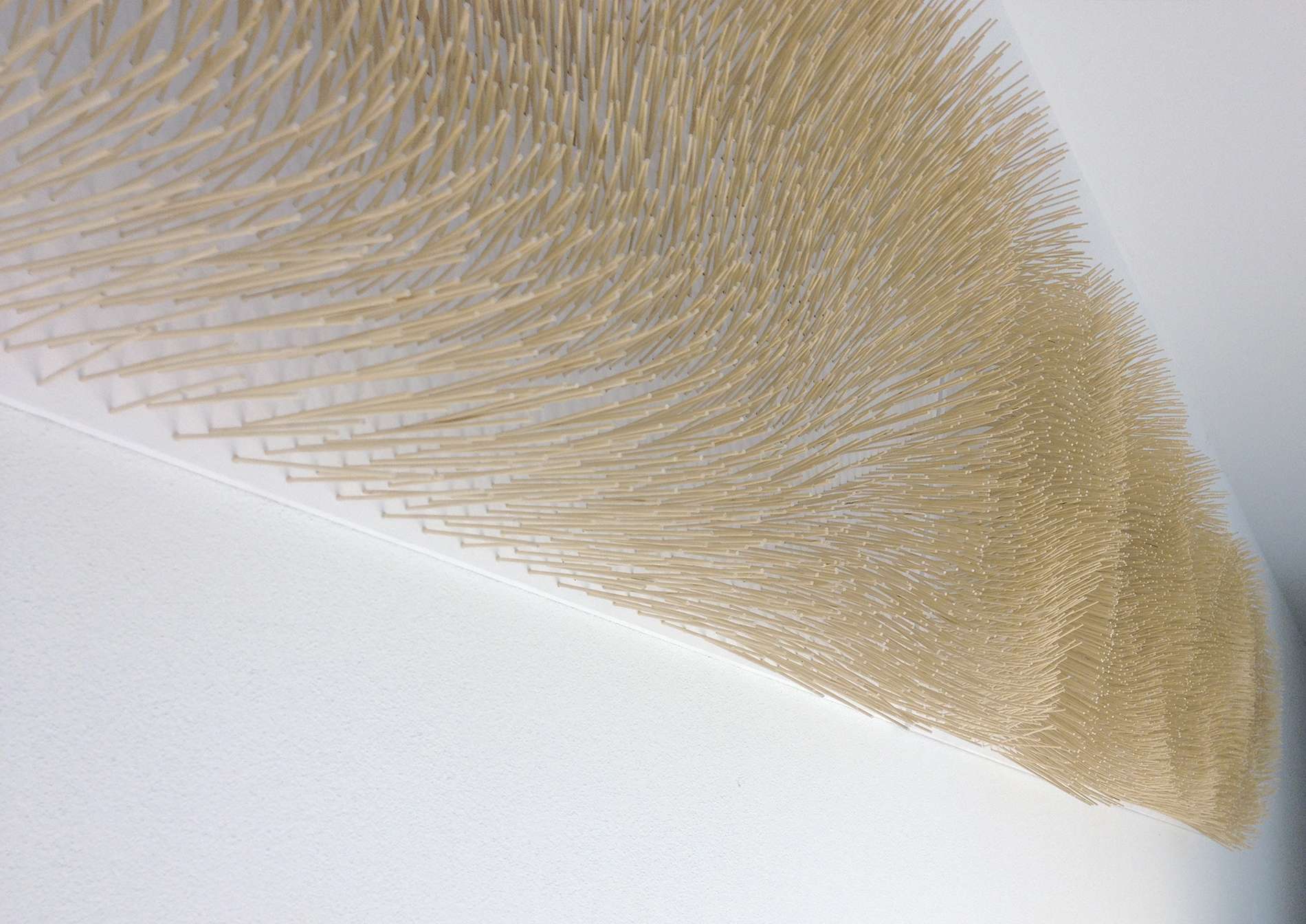

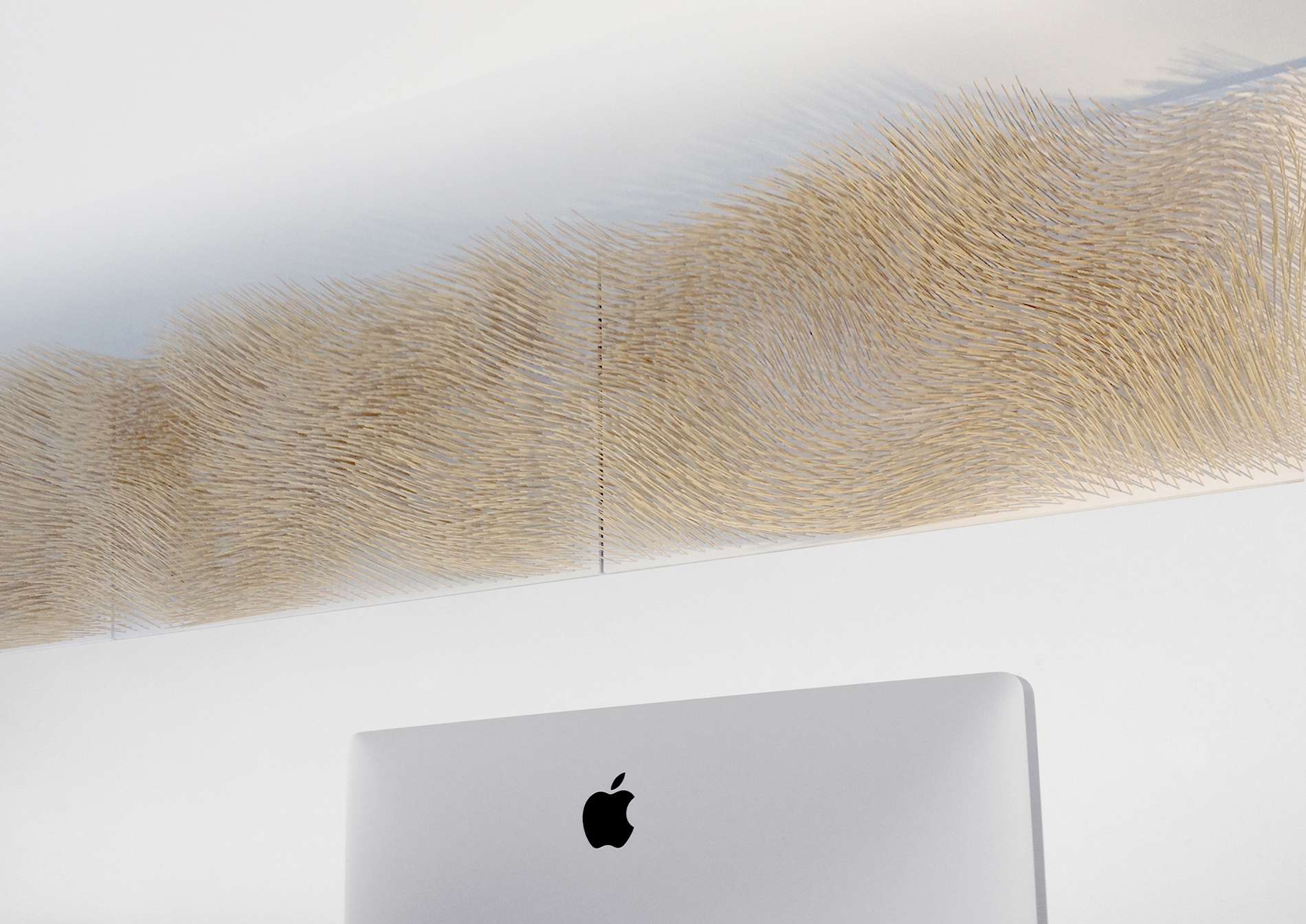

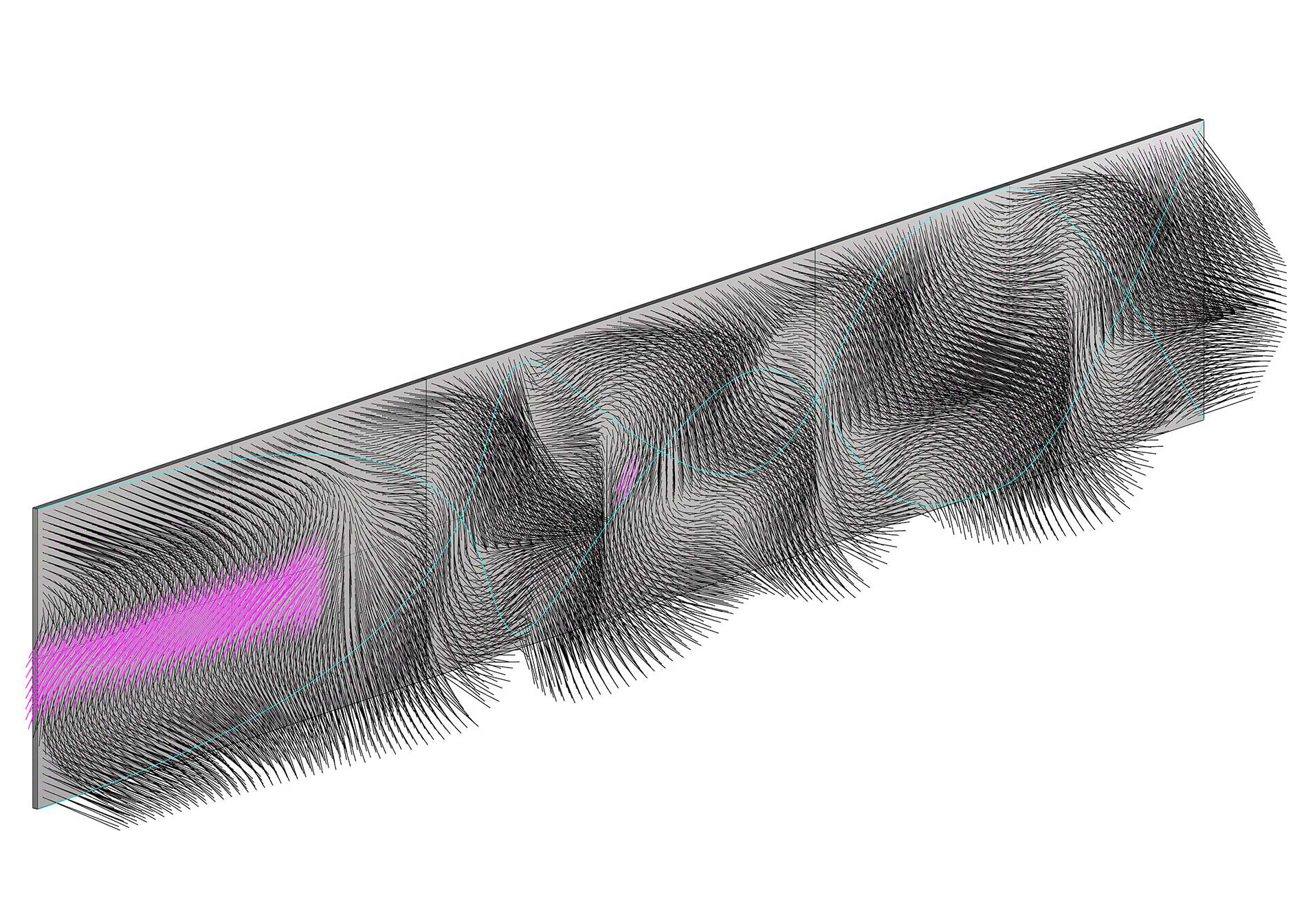

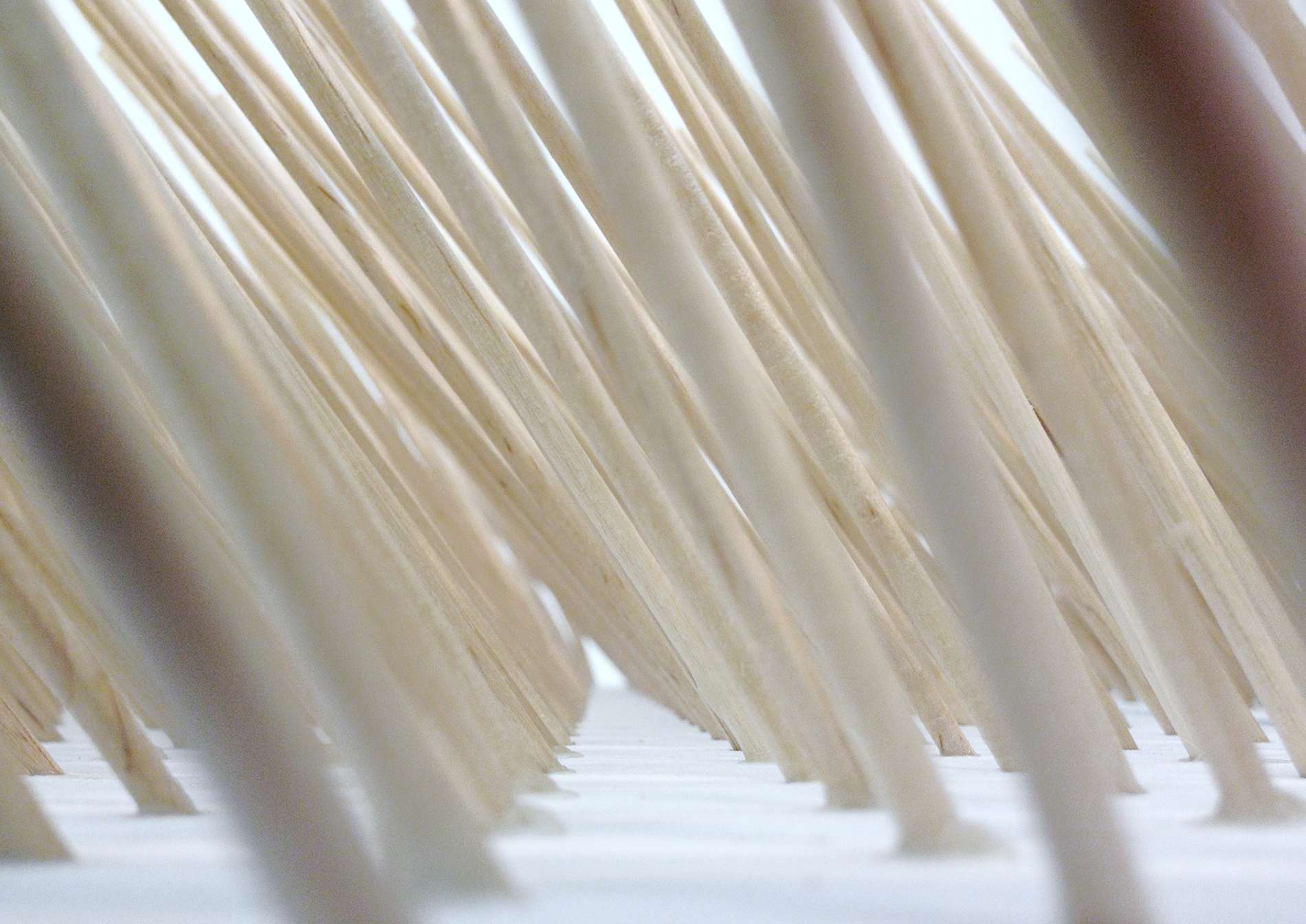

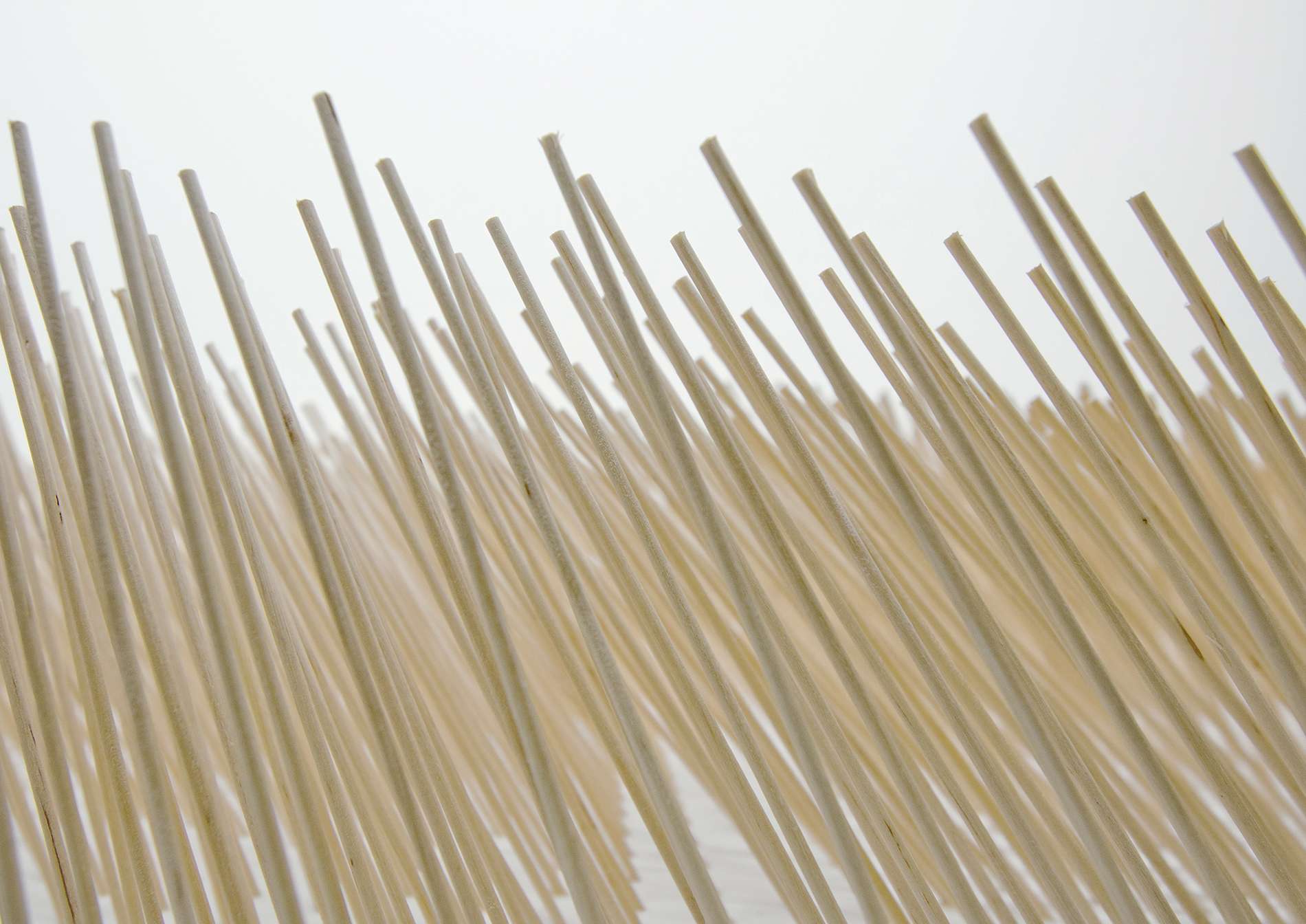

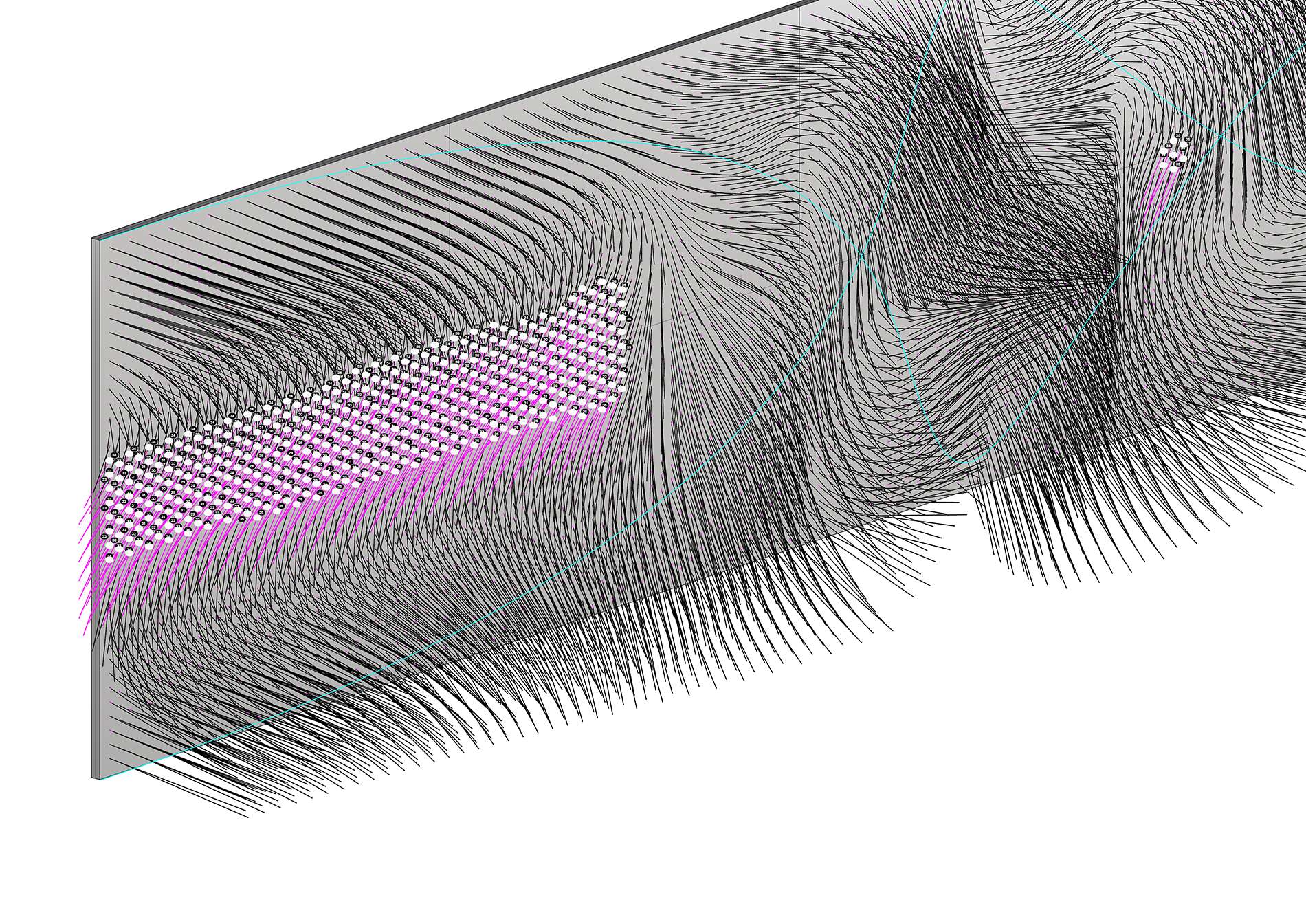

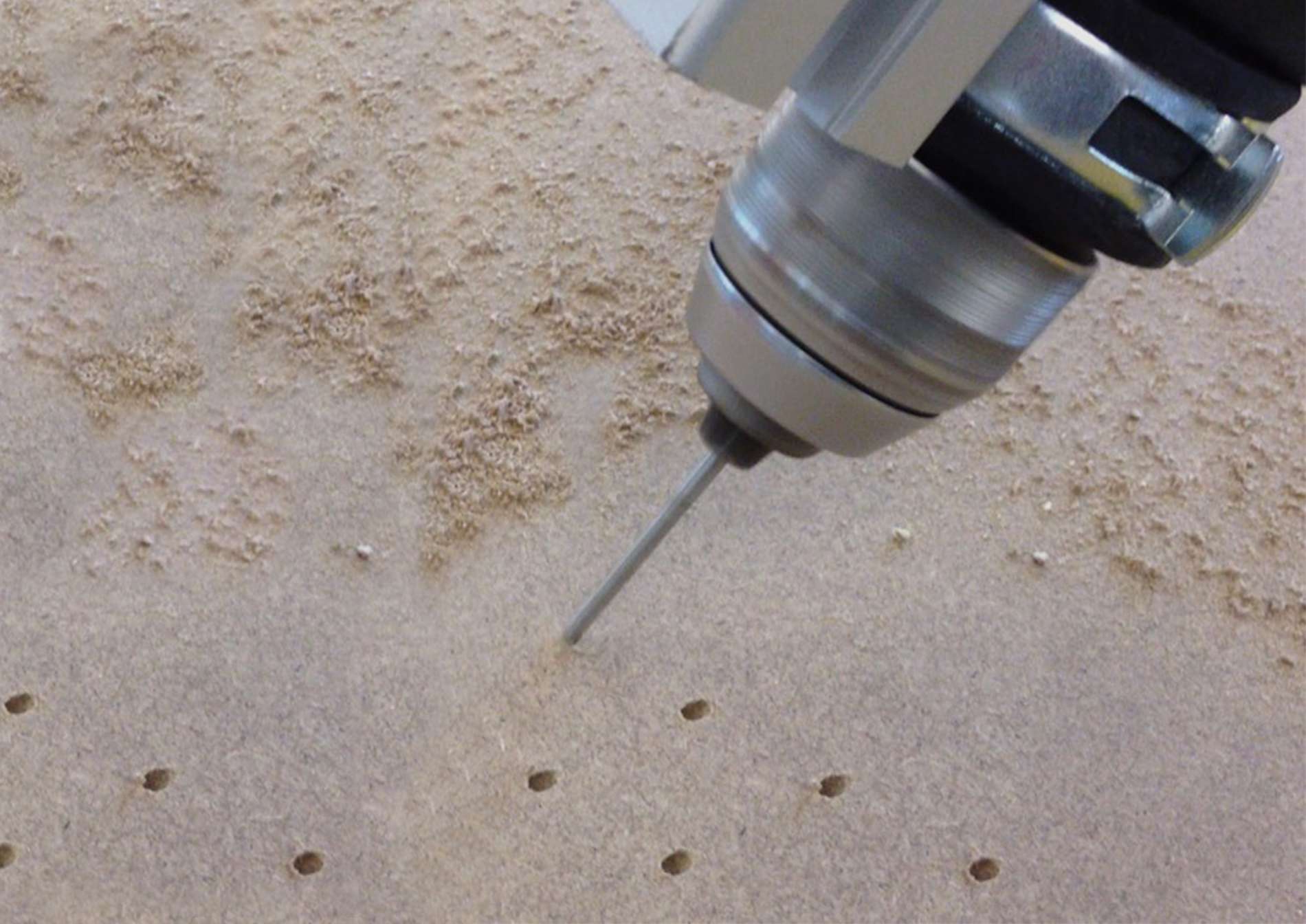

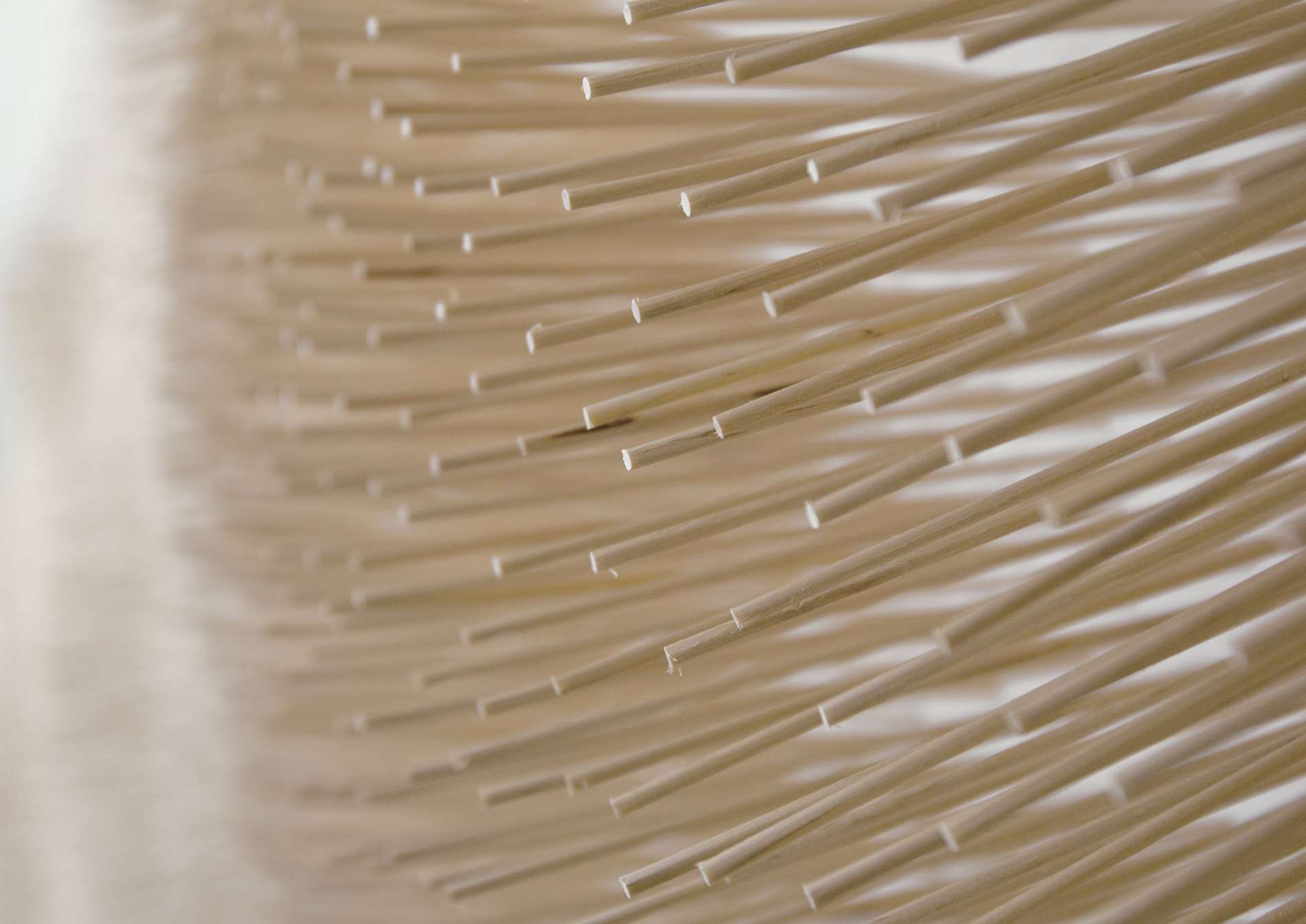

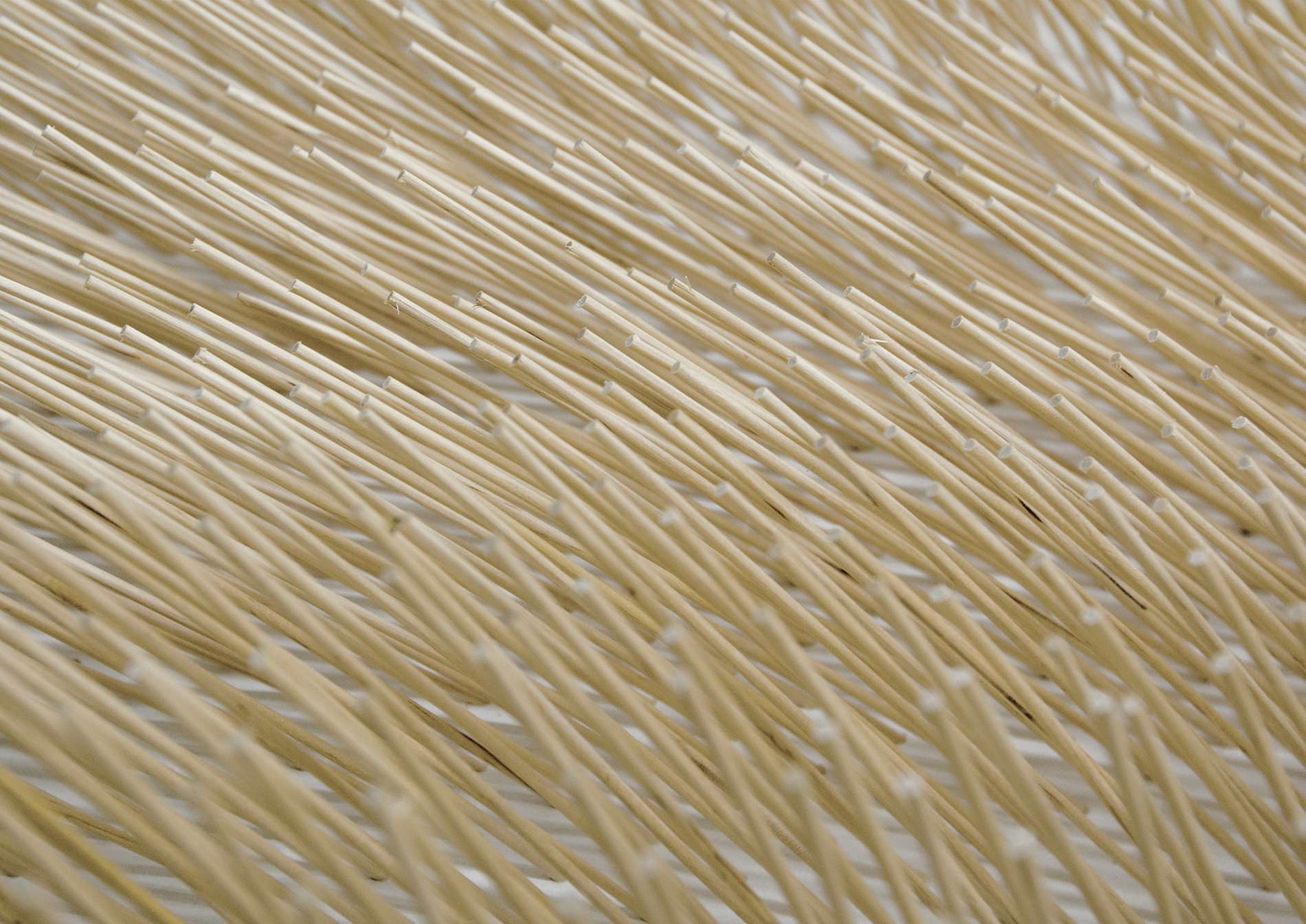

This internal research project focused on the use of CNC 5-Axis drilling processes for innovative sound diffusion active panels. The first part of the research included the development of a customized digital tool to interactively explore the arrangement of several thousand linear elements, which, as a whole, form a fluent and dynamic pattern. The second part of the research explored the physical realization of such patterns by manually inserting individual wooden sticks in the perforated panels. The CNC-drilled holes in the wooden base panel define the individual direction of every stick installed. Three prototypical panels were fabricated with a total number of 7.770 elements. The hole diameters of 2.9 mm perfectly match the thickness of the sticks with a uniform length of 200 mm.

architecture plan or photo
ROK
architecture plan or photo
ROK
architecture plan or photo
ROK
architecture plan or photo
ROK
architecture plan or photo
ROK
architecture plan or photo
ROK
architecture plan or photo
ROK
architecture plan or photo
ROK
architecture plan or photo
ROK
architecture plan or photo
ROK

Project Information

Type: Architecture
Location: Zürich, Schweiz
Status: Completed
Year: 2012

Credits

Project Partners

Michael Knauss, Silvan Oesterle, Matthias Rippmann
